Model 2400



This product is not available in the current market (Worldwide)

This product is discontinued

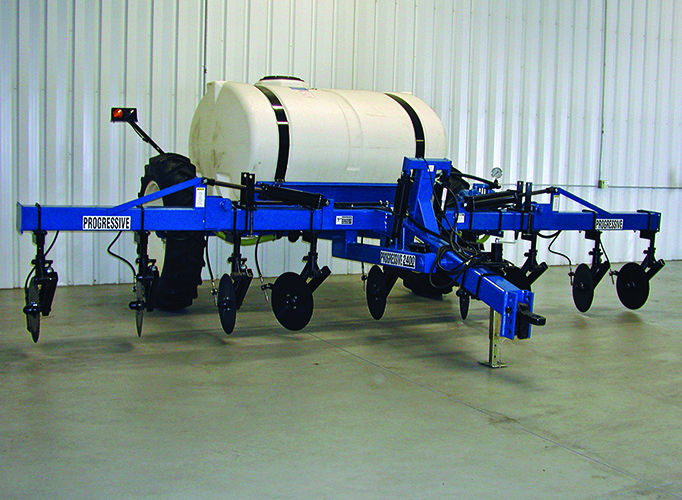

Brand Kongskilde picture 2400

Model 2400

The Model 2400 Sidedress Applicator is the smaller version of sidedress applicators by Kongskilde. It’s range is 5 coulters (15’) to 13 coulters (32-1/2’) based on 30” centers. The 2400 can also be set up on 20”, 22”, 27” 36”, 38” & 40” row spacing.

The 2400 has a patented scissor lift system. This lift system allows for constant downpressure on the bar as it it is pulled Pump Drive with single or double piston pump through the field.

The 2400 Sidedress Applicator is available with three different tank sizes and four different tire/wheel options. The liquid fertilizer is either injected into the soil by way of an injection or knife system.

Download

  • Manuals
  • Spare parts catalogs

Technical specifications

Model 2400 - Liquid - 1000 Gallon Model 2400 - Liquid - 1600 Gallon 2400 - Liquid - 750 Gallon
Foldable 15' Rigid - and other sizes 15' Rigid - Other Sizes Yes Yes
Frame width 7'' x 7'' 7'' x 7'' 7x7
Min. working width 15' 15' 15'
Max. working width 32-1/2' 32-1/2' 27-1/2'
Min. Number of Rows - - -
Max. Number of Rows Varies with row spacing Varies with row spacing Varies with row spacing
Row distance Varies: 20'', 22'', 27'', 30'' (standard row width), 36'', 38'', & 40'' Varies: 20'', 22'', 27'', 30'' (standard row width), 36'', 38'', & 40'' Varies: 20'', 22'', 27'', 30'' (standard row width), 36'', 38'', & 40''
Tank capacity 1000 Gallon 1600 Gallon 750 Gallon
Trailed Yes Yes Yes
Transport height 15' - N/A, 22-1/2' - 10', 27-1/2' - 12' 6", 32-1/2' - 14' 8" 15' - N/A, 22-1/2' - 10', 27-1/2' - 12' 6'', 32-1/2' - 14' 8'' 15' - N/A, 22-1/2' - 10', 27-1/2' - 12' 6"
Transport width 15' - 13' 0'', 22-1/2' - 16' 6'', 27-1/2' 16' 6'', 32-1/2' - 16' 6'' 15' - 13' 0'', 22-1/2' - 16' 6'', 27-1/2' 16' 6'', 32-1/2' - 16' 6'' 15' - 13' 0'', 22-1/2' - 16' 6'', 27-1/2' 16' 6''
Tyres 16.5 x 16.1, 13.6 x 38, 18.4 x 26 14.9R x 46 16.5 x 16.1
