Model 7200



Produktet er udgået

Brand Kongskilde Picture 7200

Model 7200

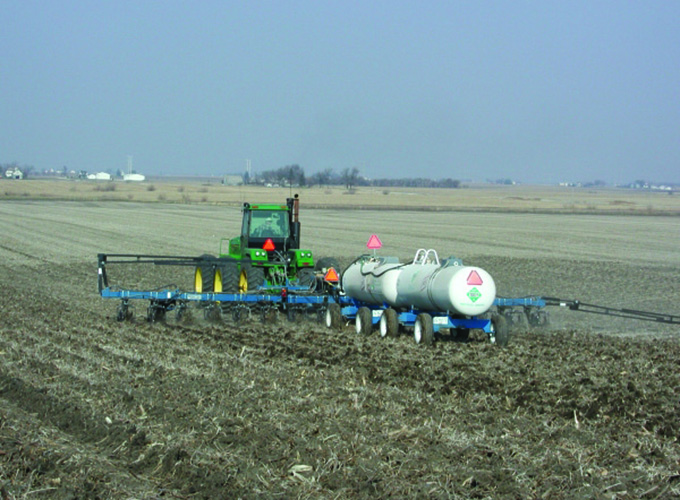

Kongskilde’s Model 7200 is a heavy-duty, front-folding, toolbar. The front-folding allows for a narrower transport width versus the standard vertical fold toolbars. The 7200 is available in working widths of 30’ (12-row),  0’ (16-row), and 60’ (24-row) based on 30” centers.

The 7200 can be used as an anhydrous toolbar, liquid fertilizer applicator, or as a dry fertilizer applicator. It is available with a rear hitch for pulling nurse tanks, liquid carts, or a dry box cart. The 7200 is also available with flat-fold row markers and a variety of row units - Edge-Bent (shear-bolt style), Auto- Reset, or the Parallel Linkage Models: Row Pro 300 Combo, Row Pro 300 Standard, and Row Pro 300 Auto-Reset.

Tekniske specifikationer

Model F7200 Front-fold
Foldbar Yes
Bomlængde 7'' x 7''
Min. arbejdsbredde 30'
Max. arbejddsbredde 60'
Min. antal rækker 12
Max. antal rækker 24
Rækkeafstand 30''
Bugseret Yes
Transporthøjde -
Transportbredde 30' & 40' - 14' 6'', 60' - 16'
Standard dækmontering 30' & 40' - 12.5L x 15 60' - 16.5 x 16.1
